mirror of https://github.com/FunKey-Project/FunKey-Project.github.io.git synced 2026-01-11 00:39:23 +01:00
Code Issues Actions Packages Projects Releases Wiki Activity

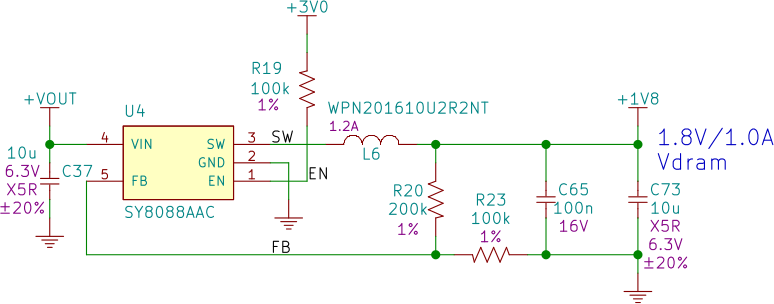

FunKey-Project.github.io/docs/assets/images/DRAM_Power_Schematics.png
Michel-FK 6ad38d92c1 add hardware description
Signed-off-by: Michel-FK <michel.stempin@funkey-project.com>
2021-01-17 18:00:51 +01:00

44 KiB
774x304px
Raw Permalink History
